Light probes are objects that store SH illumination. These SH values are baked from environmental texture maps, such as a skybox or skydome. More...

#include <LightProbes/CLightProbes.h>

Inheritance diagram for Skylicht::CLightProbes:

Public Member Functions
virtual void	initComponent ()
virtual void	updateComponent ()
virtual CObjectSerializable *	createSerializable ()
virtual void	loadSerializable (CObjectSerializable *object)
virtual CEntity *	spawn ()
CEntity *	addLightProbe (const core::vector3df &position)
int	getPositions (std::vector< core::vector3df > &positions)
void	setSH (std::vector< core::vector3df > &sh)
Public Member Functions inherited from Skylicht::CEntityHandler
virtual void	onUpdateCullingLayer (u32 mask)
CEntity *	searchEntityByID (const char *id)
virtual CEntity *	createEntity ()
virtual CEntity *	createEntity (CEntity *parent)
virtual void	removeEntity (CEntity *entity)
virtual void	removeAllEntities ()
void	regenerateEntityId ()
core::array< CEntity * > &	getEntities ()
int	getEntityCount ()
void	getEntitiesTransforms (core::array< core::matrix4 > &result)
void	setShadowCasting (bool b)
bool	isShadowCasting ()
Public Member Functions inherited from Skylicht::CComponentSystem
const char *	getName ()
virtual void	reset ()
virtual void	startComponent ()
virtual void	endUpdate ()
virtual void	onEnable (bool b)
void	setEnable (bool b)
bool	isEnable ()
CGameObject *	getGameObject ()
void	setEnableSerializable (bool b)
bool	isSerializable ()
void	addLinkComponent (CComponentSystem *comp)
void	removeAllLink ()
Public Member Functions inherited from Skylicht::IActivatorObject
virtual	~IActivatorObject ()
	Virtual destructor for polymorphic activator objects.

Protected Attributes
float	m_intensity
Protected Attributes inherited from Skylicht::CEntityHandler
core::array< CEntity * >	m_entities
bool	m_shadowCasting
Protected Attributes inherited from Skylicht::CComponentSystem
CGameObject *	m_gameObject
bool	m_enable
bool	m_serializable
std::vector< CComponentSystem * >	m_linkComponent

Additional Inherited Members
Static Public Member Functions inherited from Skylicht::CComponentSystem
static int	useComponent (CComponentSystem *used)
Protected Member Functions inherited from Skylicht::CEntityHandler
void	setEntities (CEntity **entities, u32 count)
void	removeChilds (CEntity *entity)
Protected Member Functions inherited from Skylicht::CComponentSystem
void	setOwner (CGameObject *obj)

Detailed Description

Light probes are objects that store SH illumination. These SH values are baked from environmental texture maps, such as a skybox or skydome.

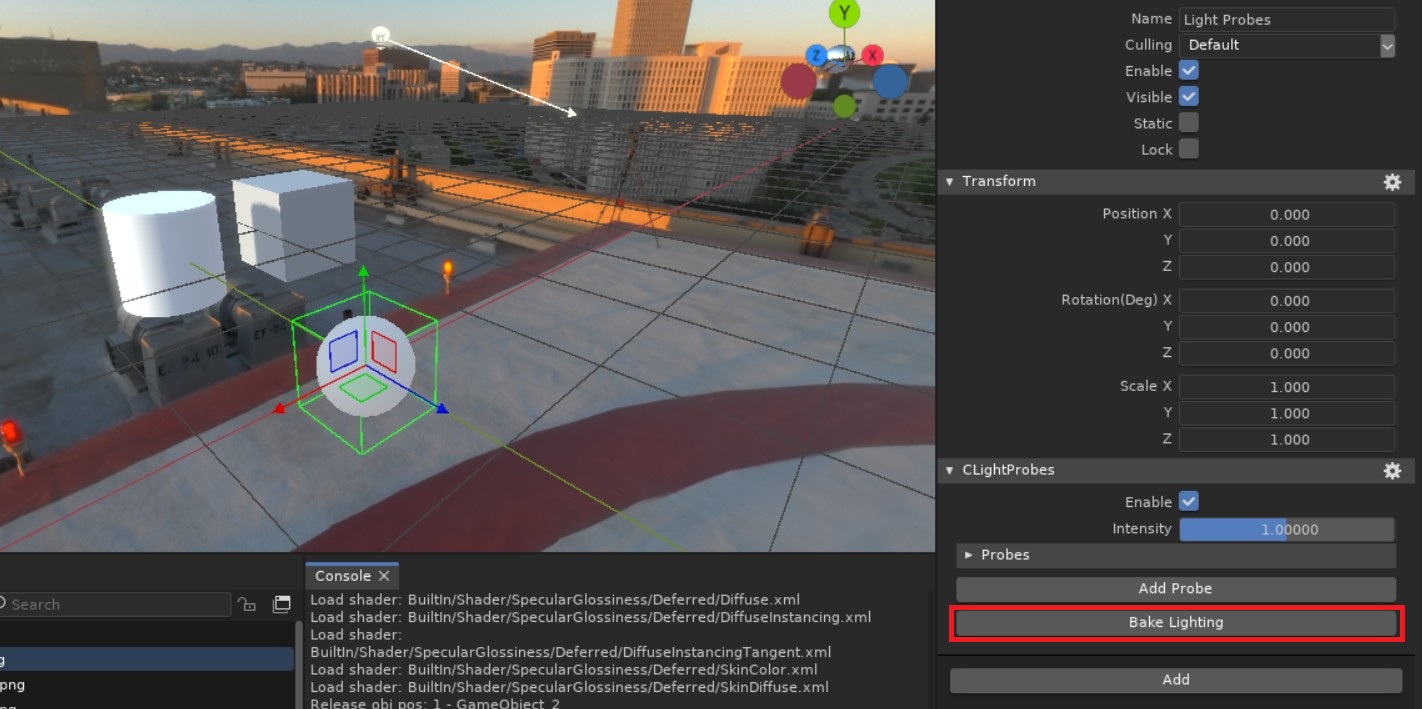

You can use Lightmapper::CLightmapper to bake light into CLightProbes, or you can also bake it directly from Skylicht-Editor once you have set up the Sky environment.

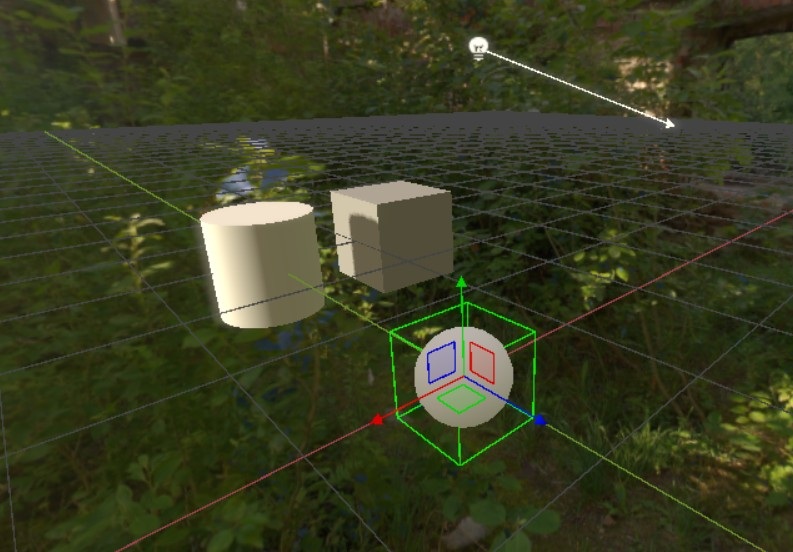

The ambient light that shines on objects is influenced by light probes and the environment

The baking process recalculates the colors and stores them in CLightProbeData. This value is then mapped to the nearest objects with CIndirectLightingData. This SH value will eventually be passed to the Shader during the drawing step.

When the environment changes, you need to rebake the light probes

// Example code for using Lightmapper to bake lighting to probes
CLightProbes* probesComponent = object->getComponent<CLightProbes>();
...
...
std::vector<core::vector3df> positions;
std::vector<Lightmapper::CSH9> probes;
std::vector<core::vector3df> results;


scene->update();

CEntityManager* entityMgr = scene->getEntityManager();
if (probesComponent->getPositions(positions) > 0)
{
    Lightmapper::CLightmapper::getInstance()->initBaker(32);
    Lightmapper::CLightmapper::getInstance()->bakeProbes(
        positions,
        probes,
        bakeCamera,
        renderPipeline,
        entityMgr
    );
    for (Lightmapper::CSH9& sh : probes)
    {
        core::vector3df r[9];
        sh.copyTo(r);
        for (int i = 0; i < 9; i++)
            results.push_back(r[i]);
    }
    probesComponent->setSH(results);
}
