The object class describes material information such as which shader it's associated with, which texture it uses, and what its color parameters are. More...

#include <Material/CMaterial.h>

Inheritance diagram for Skylicht::CMaterial:

Classes
struct	SUniformTexture
	Structure for a uniform texture parameter in the material. More...
struct	SUniformValue
	Structure for a uniform value parameter in the material. More...
struct	SExtraParams
	Structure for storing extra parameters, used when switching shaders. More...

Public Member Functions
	CMaterial (const char name, const char shaderPath)
	Constructs a material with the given name and shader path.
virtual	~CMaterial ()
	Destructor. Releases textures, deletes all parameters and cleans up resources.
CShader *	getShader ()
	Get the shader associated with this material.
void	rename (const char *name)
	Rename the material.
const char *	getName ()
	Get the name of the material.
const char *	getPackage ()
	Get the package name of the material.
void	setPackage (const char *package)
	Set the package name for the material.
const char *	getShaderPath ()
	Get the shader path of the material.
const char *	getMaterialPath ()
	Get the material file path.
void	setMaterialPath (const char *path)
	Set the material file path.
bool	isDeferred ()
	Returns true if the material is used for deferred rendering.
void	setManualInitTexture (bool b)
	Set manual initialization flag for textures.
CMaterial *	clone ()
	Create a deep clone of this material.
void	copyTo (CMaterial *mat)
	Copy all parameters and resources to another material.
void	copyParamsTo (CMaterial *mat)
	Copy only uniform parameters to another material.
void	deleteAllParams ()
	Delete all uniform parameters and textures.
void	deleteExtraParams ()
	Delete all extra parameters (used for shader switching).
void	setUniform (const char *name, float f)
	Set a float value for a named uniform.
void	setUniform2 (const char name, float f)
	Set a vec2 value for a named uniform.
void	setUniform3 (const char name, float f)
	Set a vec3 value for a named uniform.
void	setUniform4 (const char name, float f)
	Set a vec4 value for a named uniform.
void	setUniform4 (const char *name, const SColor &color)
	Set a vec4 value for a named uniform from an SColor.
const char *	getUniformTextureName (int slot)
	Get the name of a uniform texture by slot index.
void	setUniformTexture (const char name, const char path, bool loadTexture=true)
	Set a uniform texture by name and path, optionally loading the texture.
void	setUniformTexture (const char name, const char path, std::vector< std::string > &folder, bool loadTexture=true)
	Set a uniform texture by name and path, searching in specified folders.
void	setUniformTexture (const char name, ITexture texture)
	Set a uniform texture by name, using an ITexture pointer.
void	setUniformTextureWrapU (const char *name, int wrapU)
	Set the wrapping mode in U direction for a uniform texture.
void	setUniformTextureWrapV (const char *name, int wrapV)
	Set the wrapping mode in V direction for a uniform texture.
SExtraParams *	newExtra (const char *shaderPath)
	Create a new extra parameter block for a specific shader path.
void	setExtraUniformTexture (SExtraParams e, const char name, const char *path)
	Set the path for an extra uniform texture.
void	setExtraUniform (SExtraParams e, const char name, float *f, int floatSize)
	Set a value for an extra uniform.
void	setExtraUniformTextureWrapU (SExtraParams e, const char name, int wrapU)
	Set wrapping mode U for extra uniform texture.
void	setExtraUniformTextureWrapV (SExtraParams e, const char name, int wrapV)
	Set wrapping mode V for extra uniform texture.
std::vector< SUniformValue * > &	getUniformParams ()
	Get a reference to the uniform value parameters vector.
std::vector< SUniformTexture * > &	getUniformTexture ()
	Get a reference to the uniform texture parameters vector.
std::vector< SExtraParams * > &	getExtraParams ()
	Get a reference to the extra parameters vector.
void	setBackfaceCulling (bool b)
	Enable or disable backface culling for the material.
bool	isBackfaceCulling ()
	Returns whether backface culling is enabled.
void	setFrontfaceCulling (bool b)
	Enable or disable frontface culling for the material.
bool	isFrontfaceCulling ()
	Returns whether frontface culling is enabled.
void	setZWrite (bool b)
	Enable or disable Z-buffer writing for the material.
bool	isZWrite ()
	Returns whether Z-buffer writing is enabled.
void	setZTest (video::E_COMPARISON_FUNC f)
	Set the Z-buffer comparison function.
video::E_COMPARISON_FUNC	getZTest ()
	Get the Z-buffer comparison function.
SUniformValue *	getUniform (const char *name)
	Get a uniform value by name (creates if not found).
SUniformTexture *	getUniformTexture (const char *name)
	Get a uniform texture by name (creates if not found).
SUniformValue *	getExtraUniform (SExtraParams e, const char name)
	Get an extra uniform value by name (creates if not found).
SUniformTexture *	getExtraUniformTexture (SExtraParams e, const char name)
	Get an extra uniform texture by name (creates if not found).
CShaderParams &	getShaderParams ()
	Get the shader parameter set for this material.
bool	haveUniform (const char *name)
	Returns true if the uniform with the given name exists.
void	initMaterial ()
	Initializes the material by loading the shader and setting up all parameters.
void	setTexture (ITexture **textures, int num)
	Set textures for all slots using an array.
void	setTexture (int slot, ITexture *texture)
	Set the texture for a specific slot.
ITexture *	getTexture (int slot)
	Get the texture assigned to a slot.
void	setProperty (const std::string &name, const std::string &value)
	Set a material property by name.
std::string	getProperty (const std::string &name)
	Get a material property value by name.
void	loadDefaultTexture ()
	Load default textures specified by the shader.
void	loadUniformTexture ()
	Load all uniform textures assigned to this material.
void	unloadDefaultTexture ()
	Unload all default textures.
void	unloadUniformTexture ()
	Unload all uniform textures.
void	unloadUniformTexture (const char *name)
	Unload a specific uniform texture by name.
void	setOverrideResource (ITexture *texture, CShader::EResourceType type)
	Override a resource texture for this material.
void	changeShader (CShader *shader)
	Change the shader for this material.
void	changeShader (const char *path)
	Change the shader for this material using a path.
bool	autoDetectLoadTexture ()
	Automatically detect and load textures based on shader and uniform settings.
void	applyMaterial ()
	Apply material properties and textures internally (no arguments).
void	applyMaterial (SMaterial &mat)
	Update textures for the passed SMaterial.
void	updateTexture (SMaterial &mat)
	Replace a texture resource with a new texture in all relevant slots and uniforms.
void	replaceTexture (ITexture oldTexture, ITexture newTexture)
	Replace a texture resource with a new texture in all relevant slots and uniforms.
void	updateShaderParams ()
	Update internal shader parameter values based on uniforms.
Public Member Functions inherited from irr::IReferenceCounted
	IReferenceCounted ()
	Constructor.
virtual	~IReferenceCounted ()
	Destructor.
void	grab () const
	Grabs the object. Increments the reference counter by one.
bool	drop () const
	Drops the object. Decrements the reference counter by one.
s32	getReferenceCount () const
	Get the reference count.
const c8 *	getDebugName () const
	Returns the debug name of the object.

Protected Member Functions
void	bindUniformParam ()
	Bind uniform parameter slots to shader uniforms.
void	updateSetTextureSlot ()
	Update and assign texture slots for all uniforms.
void	initDefaultValue ()
	Initialize default values for material uniforms based on shader defaults.
void	setDefaultValue (SUniformValue v, SUniform u)
	Set default value for a uniform value using shader information.
SUniformValue *	newUniform (const char *name, int floatSize)
	Create a new uniform value with given name and float size.
SUniformTexture *	newUniformTexture (const char *name)
	Create a new uniform texture with given name.
SUniformTexture *	newExtraUniformTexture (SExtraParams e, const char name)
	Create a new extra uniform texture for a specific extra parameter block.
SUniformValue *	newExtraUniform (SExtraParams e, const char name, int floatSize)
	Create a new extra uniform value for a specific extra parameter block.
void	addShaderUI (CShader::SUniformUI *ui)
	Add a shader UI control (from shader XML) to the material's uniforms.
SExtraParams *	getExtraParams (const char *shaderPath)
	Get extra parameter block by shader path.
void	saveExtraParams ()
	Save extra parameters for the current shader path.
void	reloadExtraParams (const char *shaderPath)
	Reload extra parameters for the given shader path.
SUniformTexture *	findExtraTexture (const char *name)
	Find an extra texture by name among all extra parameter blocks.
SUniformValue *	findExtraParam (const char *name, int floatSize)
	Find an extra uniform value by name and float size among all extra parameter blocks.
Protected Member Functions inherited from irr::IReferenceCounted
void	setDebugName (const c8 *newName)
	Sets the debug name of the object.

Detailed Description

The object class describes material information such as which shader it's associated with, which texture it uses, and what its color parameters are.

Skylicht-Editor

You can create materials in two ways

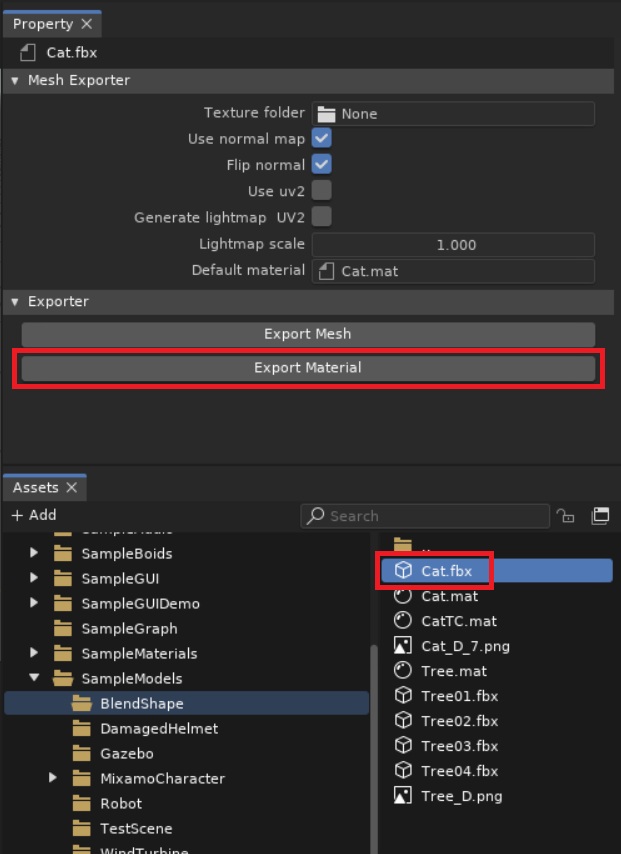

Method 1: Select the model file (.fbx, .dae) and click the "Export Material" button

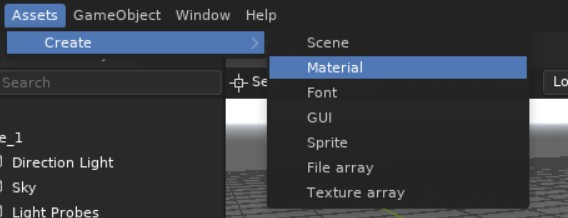

Method 2: Create it manually by choosing the menu Asset/Create/Material.

Adjusting materials:

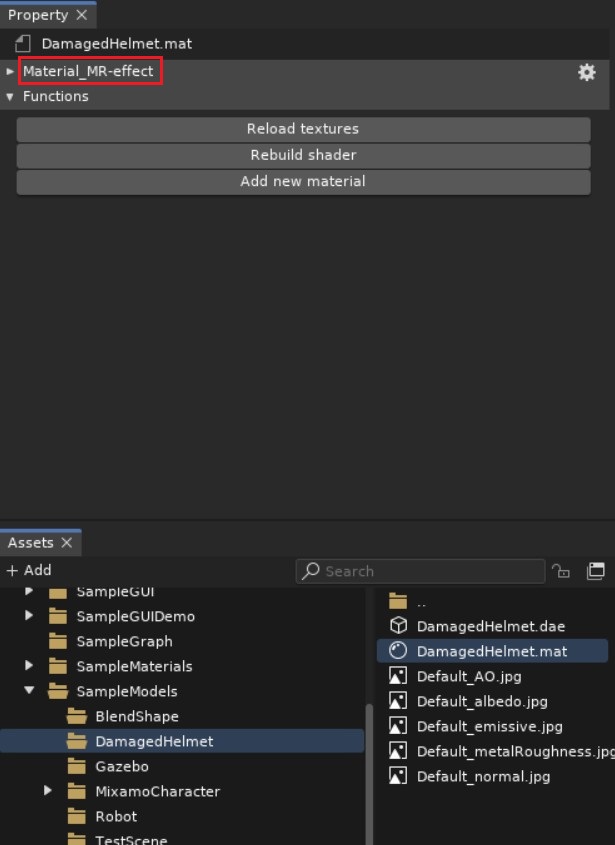

The Material Property window allows you to add multiple materials within a .mat file. It also includes functions like delete/rename.

Material property

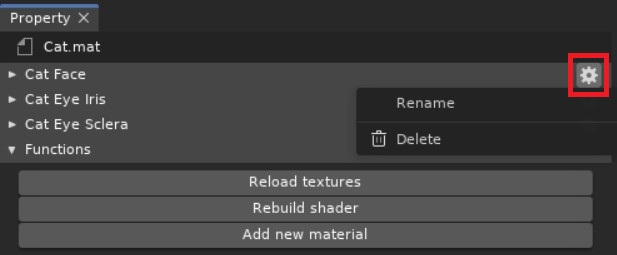

Delete/Rename Material

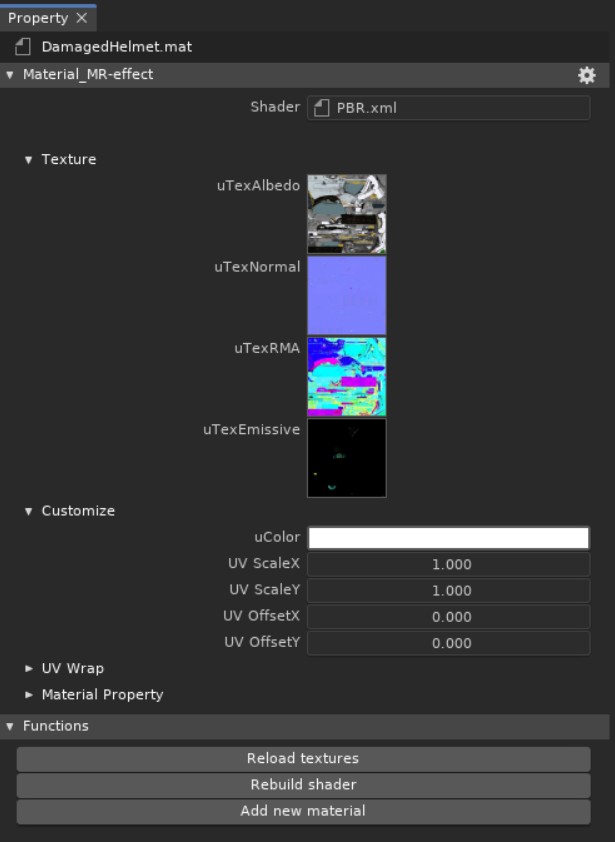

Next, drag the shader .xml file into the Shader Field to select the material's shader.

From there, you can then drag texture files into the various uniform textures, or adjust the parameters defined within the shader .xml.

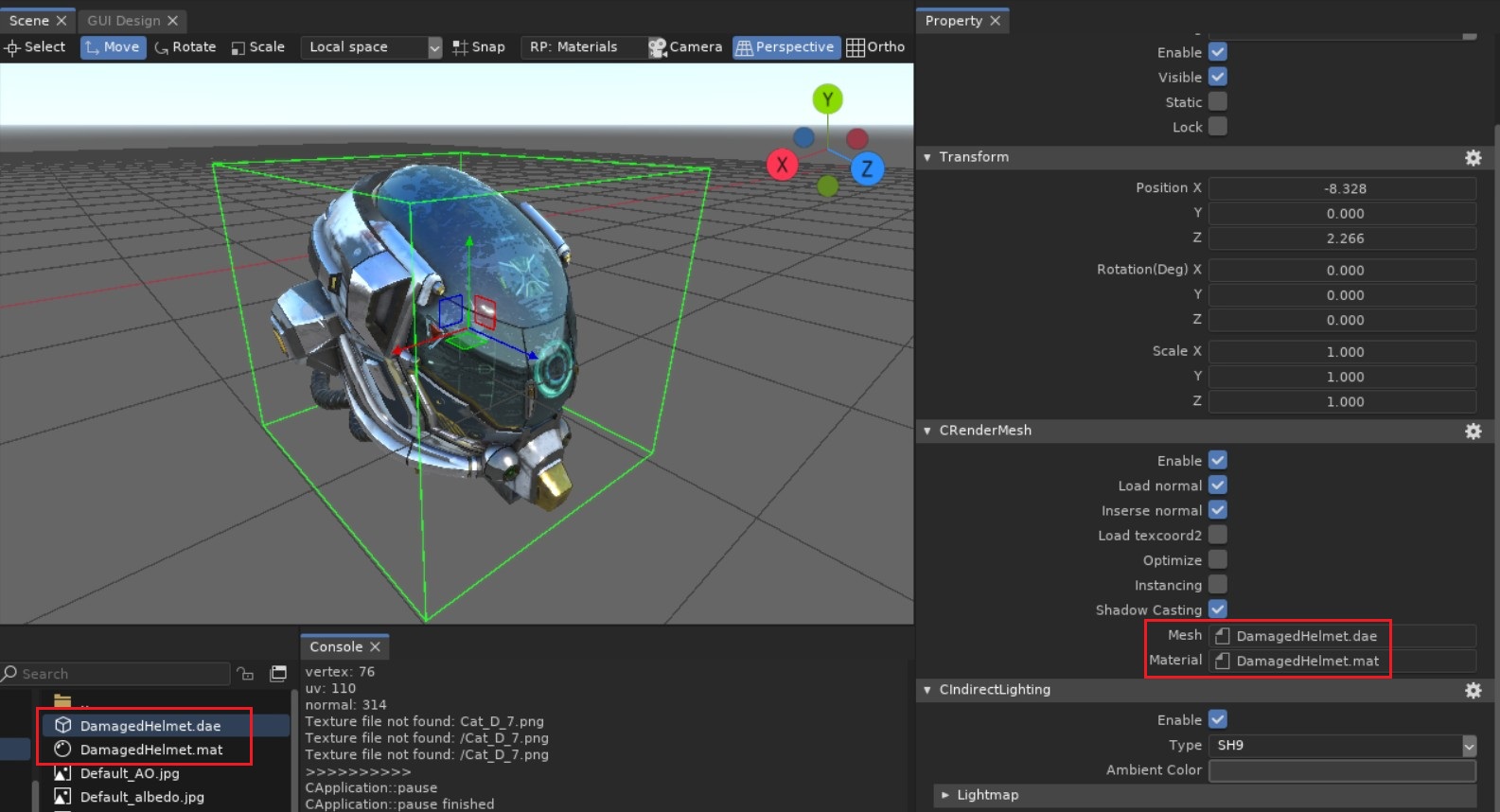

Materials are essential for the CRenderMesh component to display the model's appearance on the Skylicht-Engine

You use CMaterialManager to support loading .mat material files.

std::vector<std::string> textureFolders;
ArrayMaterial& materials = CMaterialManager::getInstance()->loadMaterial(
    "SampleModels/BlendShape/Cat.mat",
    true,
    textureFolders
);

for (CMaterial* mat: materials)
{
    printf("%s\n", mat->getName());
}

Constructor & Destructor Documentation

◆ CMaterial()

Skylicht::CMaterial::CMaterial	(	const char *	name,
		const char *	shaderPath )

Constructs a material with the given name and shader path.

Parameters

name	Name of the material.
shaderPath	Path to the shader file.

Member Function Documentation

◆ addShaderUI()

void Skylicht::CMaterial::addShaderUI ( CShader::SUniformUI * ui )

protected

Add a shader UI control (from shader XML) to the material's uniforms.

Parameters

ui	Pointer to uniform UI definition.

◆ applyMaterial()

void Skylicht::CMaterial::applyMaterial ( SMaterial & mat )

Update textures for the passed SMaterial.

Parameters

mat	Reference to SMaterial.

◆ autoDetectLoadTexture()

bool Skylicht::CMaterial::autoDetectLoadTexture ( )

Automatically detect and load textures based on shader and uniform settings.

Returns: True if all textures are found and loaded, false otherwise.

◆ changeShader() [1/2]

void Skylicht::CMaterial::changeShader ( const char * path )

Change the shader for this material using a path.

Parameters

path	Path to new shader file.

◆ changeShader() [2/2]

void Skylicht::CMaterial::changeShader ( CShader * shader )

Change the shader for this material.

Parameters

shader Pointer to new shader.

◆ clone()

CMaterial * Skylicht::CMaterial::clone ( )

Create a deep clone of this material.

Returns: Pointer to the cloned material.

◆ copyParamsTo()

void Skylicht::CMaterial::copyParamsTo ( CMaterial * mat )

Copy only uniform parameters to another material.

Parameters

mat	Target material to copy parameters to.

◆ copyTo()

void Skylicht::CMaterial::copyTo ( CMaterial * mat )

Copy all parameters and resources to another material.

Parameters

mat	Target material to copy parameters to.

◆ findExtraParam()

SUniformValue * Skylicht::CMaterial::findExtraParam	(	const char *	name,
		int	floatSize )

protected

Find an extra uniform value by name and float size among all extra parameter blocks.

Parameters

name	Uniform name.
floatSize	Number of floats.

Returns: Pointer to SUniformValue, or NULL if not found.

◆ findExtraTexture()

SUniformTexture * Skylicht::CMaterial::findExtraTexture ( const char * name )

protected

Find an extra texture by name among all extra parameter blocks.

Parameters

name	Uniform texture name.

Returns: Pointer to SUniformTexture, or NULL if not found.

◆ getExtraParams() [1/2]

std::vector< SExtraParams * > & Skylicht::CMaterial::getExtraParams ( )

inline

Get a reference to the extra parameters vector.

Returns: Reference to vector of SExtraParams pointers.

◆ getExtraParams() [2/2]

SExtraParams * Skylicht::CMaterial::getExtraParams ( const char * shaderPath )

protected

Get extra parameter block by shader path.

Parameters

shaderPath Shader path string.

Returns: Pointer to SExtraParams instance, or NULL if not found.

◆ getExtraUniform()

SUniformValue * Skylicht::CMaterial::getExtraUniform	(	SExtraParams *	e,
		const char *	name )

Get an extra uniform value by name (creates if not found).

Parameters

e	Pointer to extra parameter block.
name	Uniform name.

Returns: Pointer to SUniformValue instance.

◆ getExtraUniformTexture()

SUniformTexture * Skylicht::CMaterial::getExtraUniformTexture	(	SExtraParams *	e,
		const char *	name )

Get an extra uniform texture by name (creates if not found).

Parameters

e	Pointer to extra parameter block.
name	Uniform texture name.

Returns: Pointer to SUniformTexture instance.

◆ getMaterialPath()

const char * Skylicht::CMaterial::getMaterialPath ( )

inline

Get the material file path.

Returns: Material file path string.

◆ getName()

const char * Skylicht::CMaterial::getName ( )

inline

Get the name of the material.

Returns: Material name string.

◆ getPackage()

const char * Skylicht::CMaterial::getPackage ( )

inline

Get the package name of the material.

Returns: Package name string.

See also: CMaterialManager

◆ getProperty()

std::string Skylicht::CMaterial::getProperty ( const std::string & name )

Get a material property value by name.

Parameters

name	Property name.

Returns: Property value string.

◆ getShader()

CShader * Skylicht::CMaterial::getShader ( )

inline

Get the shader associated with this material.

Returns: Pointer to the shader.

◆ getShaderParams()

CShaderParams & Skylicht::CMaterial::getShaderParams ( )

inline

Get the shader parameter set for this material.

Returns: Reference to CShaderParams instance.

◆ getShaderPath()

const char * Skylicht::CMaterial::getShaderPath ( )

inline

Get the shader path of the material.

Returns: Shader path string.

◆ getTexture()

ITexture * Skylicht::CMaterial::getTexture ( int slot )

Get the texture assigned to a slot.

Parameters

slot	Slot index.

Returns: Pointer to texture.

◆ getUniform()

SUniformValue * Skylicht::CMaterial::getUniform ( const char * name )

Get a uniform value by name (creates if not found).

Parameters

name	Name of the uniform.

Returns: Pointer to the SUniformValue instance.

◆ getUniformParams()

std::vector< SUniformValue * > & Skylicht::CMaterial::getUniformParams ( )

inline

Get a reference to the uniform value parameters vector.

Returns: Reference to vector of SUniformValue pointers.

◆ getUniformTexture() [1/2]

std::vector< SUniformTexture * > & Skylicht::CMaterial::getUniformTexture ( )

inline

Get a reference to the uniform texture parameters vector.

Returns: Reference to vector of SUniformTexture pointers.

◆ getUniformTexture() [2/2]

SUniformTexture * Skylicht::CMaterial::getUniformTexture ( const char * name )

Get a uniform texture by name (creates if not found).

Parameters

name	Name of the uniform texture.

Returns: Pointer to SUniformTexture instance.

◆ getUniformTextureName()

const char * Skylicht::CMaterial::getUniformTextureName ( int slot )

Get the name of a uniform texture by slot index.

Parameters

slot	Texture slot index.

Returns: Name string, or NULL if not found.

◆ getZTest()

video::E_COMPARISON_FUNC Skylicht::CMaterial::getZTest ( )

inline

Get the Z-buffer comparison function.

Returns: Comparison function value.

◆ haveUniform()

bool Skylicht::CMaterial::haveUniform ( const char * name )

Returns true if the uniform with the given name exists.

Parameters

name	Uniform name.

Returns: True if exists, false otherwise.

◆ isBackfaceCulling()

bool Skylicht::CMaterial::isBackfaceCulling ( )

inline

Returns whether backface culling is enabled.

Returns: True if enabled, false otherwise.

◆ isDeferred()

bool Skylicht::CMaterial::isDeferred ( )

inline

Returns true if the material is used for deferred rendering.

Returns: True if deferred, false otherwise.

◆ isFrontfaceCulling()

bool Skylicht::CMaterial::isFrontfaceCulling ( )

inline

Returns whether frontface culling is enabled.

Returns: True if enabled, false otherwise.

◆ isZWrite()

bool Skylicht::CMaterial::isZWrite ( )

inline

Returns whether Z-buffer writing is enabled.

Returns: True if enabled, false otherwise.

◆ newExtra()

SExtraParams * Skylicht::CMaterial::newExtra ( const char * shaderPath )

Create a new extra parameter block for a specific shader path.

Parameters

shaderPath Shader path string.

Returns: Pointer to new SExtraParams instance.

◆ newExtraUniform()

SUniformValue * Skylicht::CMaterial::newExtraUniform	(	SExtraParams *	e,
		const char *	name,
		int	floatSize )

protected

Create a new extra uniform value for a specific extra parameter block.

Parameters

e	Pointer to extra parameter block.
name	Name of the uniform.
floatSize	Number of floats.

Returns: Pointer to new SUniformValue.

◆ newExtraUniformTexture()

SUniformTexture * Skylicht::CMaterial::newExtraUniformTexture	(	SExtraParams *	e,
		const char *	name )

protected

Create a new extra uniform texture for a specific extra parameter block.

Parameters

e	Pointer to extra parameter block.
name	Name of the uniform texture.

Returns: Pointer to new SUniformTexture.

◆ newUniform()

SUniformValue * Skylicht::CMaterial::newUniform	(	const char *	name,
		int	floatSize )

protected

Create a new uniform value with given name and float size.

Parameters

name	Name of the uniform.
floatSize	Number of floats.

Returns: Pointer to new SUniformValue.

◆ newUniformTexture()

SUniformTexture * Skylicht::CMaterial::newUniformTexture ( const char * name )

protected

Create a new uniform texture with given name.

Parameters

name	Name of the uniform texture.

Returns: Pointer to new SUniformTexture.

◆ reloadExtraParams()

void Skylicht::CMaterial::reloadExtraParams ( const char * shaderPath )

protected

Reload extra parameters for the given shader path.

Parameters

shaderPath Shader path string.

◆ rename()

void Skylicht::CMaterial::rename ( const char * name )

inline

Rename the material.

Parameters

name	New name for the material.

◆ replaceTexture()

void Skylicht::CMaterial::replaceTexture	(	ITexture *	oldTexture,
		ITexture *	newTexture )

Replace a texture resource with a new texture in all relevant slots and uniforms.

Parameters

oldTexture	Pointer to old texture.
newTexture	Pointer to new texture.

◆ setBackfaceCulling()

void Skylicht::CMaterial::setBackfaceCulling ( bool b )

inline

Enable or disable backface culling for the material.

Parameters

b	True to enable, false to disable.

◆ setDefaultValue()

void Skylicht::CMaterial::setDefaultValue	(	SUniformValue *	v,
		SUniform *	u )

protected

Set default value for a uniform value using shader information.

Parameters

v	Pointer to SUniformValue.
u	Pointer to SUniform.

◆ setExtraUniform()

void Skylicht::CMaterial::setExtraUniform	(	SExtraParams *	e,
		const char *	name,
		float *	f,
		int	floatSize )

Set a value for an extra uniform.

Parameters

e	Pointer to extra parameter block.
name	Uniform name.
f	Pointer to value array.
floatSize	Number of floats.

◆ setExtraUniformTexture()

void Skylicht::CMaterial::setExtraUniformTexture	(	SExtraParams *	e,
		const char *	name,
		const char *	path )

Set the path for an extra uniform texture.

Parameters

e	Pointer to extra parameter block.
name	Uniform texture name.
path	Path to texture.

◆ setExtraUniformTextureWrapU()

void Skylicht::CMaterial::setExtraUniformTextureWrapU	(	SExtraParams *	e,
		const char *	name,
		int	wrapU )

Set wrapping mode U for extra uniform texture.

Parameters

e	Pointer to extra parameter block.
name	Uniform texture name.
wrapU	Wrapping mode value.

See also: irr::video::E_TEXTURE_CLAMP

◆ setExtraUniformTextureWrapV()

void Skylicht::CMaterial::setExtraUniformTextureWrapV	(	SExtraParams *	e,
		const char *	name,
		int	wrapV )

Set wrapping mode V for extra uniform texture.

Parameters

e	Pointer to extra parameter block.
name	Uniform texture name.
wrapV	Wrapping mode value.

See also: irr::video::E_TEXTURE_CLAMP

◆ setFrontfaceCulling()

void Skylicht::CMaterial::setFrontfaceCulling ( bool b )

inline

Enable or disable frontface culling for the material.

Parameters

b	True to enable, false to disable.

◆ setManualInitTexture()

void Skylicht::CMaterial::setManualInitTexture ( bool b )

inline

Set manual initialization flag for textures.

Parameters

b	True to enable manual initialization.

◆ setMaterialPath()

void Skylicht::CMaterial::setMaterialPath ( const char * path )

inline

Set the material file path.

Parameters

path	New material file path string.

◆ setOverrideResource()

void Skylicht::CMaterial::setOverrideResource	(	ITexture *	texture,
		CShader::EResourceType	type )

inline

Override a resource texture for this material.

Parameters

texture	Pointer to texture.
type	Resource type (see CShader::EResourceType).

◆ setPackage()

void Skylicht::CMaterial::setPackage ( const char * package )

inline

Set the package name for the material.

Parameters

package Package name string.

See also: CMaterialManager

◆ setProperty()

void Skylicht::CMaterial::setProperty	(	const std::string &	name,
		const std::string &	value )

Set a material property by name.

Parameters

name	Property name.
value	Property value.

◆ setTexture() [1/2]

void Skylicht::CMaterial::setTexture	(	int	slot,
		ITexture *	texture )

Set the texture for a specific slot.

Parameters

slot	Slot index.
texture	Pointer to texture.

◆ setTexture() [2/2]

void Skylicht::CMaterial::setTexture	(	ITexture **	textures,
		int	num )

Set textures for all slots using an array.

Parameters

textures	Array of texture pointers.
num	Number of textures.

◆ setUniform()

void Skylicht::CMaterial::setUniform	(	const char *	name,
		float	f )

Set a float value for a named uniform.

Parameters

name	Name of the uniform.
f	Value to set.

◆ setUniform2()

void Skylicht::CMaterial::setUniform2	(	const char *	name,
		float *	f )

Set a vec2 value for a named uniform.

Parameters

name	Name of the uniform.
f	Pointer to array of 2 floats.

◆ setUniform3()

void Skylicht::CMaterial::setUniform3	(	const char *	name,
		float *	f )

Set a vec3 value for a named uniform.

Parameters

name	Name of the uniform.
f	Pointer to array of 3 floats.

◆ setUniform4() [1/2]

void Skylicht::CMaterial::setUniform4	(	const char *	name,
		const SColor &	color )

Set a vec4 value for a named uniform from an SColor.

Parameters

name	Name of the uniform.
color	Color value to set.

◆ setUniform4() [2/2]

void Skylicht::CMaterial::setUniform4	(	const char *	name,
		float *	f )

Set a vec4 value for a named uniform.

Parameters

name	Name of the uniform.
f	Pointer to array of 4 floats.

◆ setUniformTexture() [1/3]

void Skylicht::CMaterial::setUniformTexture	(	const char *	name,
		const char *	path,
		bool	loadTexture = true )

Set a uniform texture by name and path, optionally loading the texture.

Parameters

name	Uniform texture name.
path	Path to texture file.
loadTexture	True to load the texture.

◆ setUniformTexture() [2/3]

void Skylicht::CMaterial::setUniformTexture	(	const char *	name,
		const char *	path,
		std::vector< std::string > &	folder,
		bool	loadTexture = true )

Set a uniform texture by name and path, searching in specified folders.

Parameters

name	Uniform texture name.
path	Path to texture file.
folder	List of folders to search for the texture.
loadTexture	True to load the texture.

◆ setUniformTexture() [3/3]

void Skylicht::CMaterial::setUniformTexture	(	const char *	name,
		ITexture *	texture )

Set a uniform texture by name, using an ITexture pointer.

Parameters

name	Uniform texture name.
texture	Pointer to texture.

◆ setUniformTextureWrapU()

void Skylicht::CMaterial::setUniformTextureWrapU	(	const char *	name,
		int	wrapU )

Set the wrapping mode in U direction for a uniform texture.

Parameters

name	Uniform texture name.
wrapU	Wrapping mode value.

See also: irr::video::E_TEXTURE_CLAMP

◆ setUniformTextureWrapV()

void Skylicht::CMaterial::setUniformTextureWrapV	(	const char *	name,
		int	wrapV )

Set the wrapping mode in V direction for a uniform texture.

Parameters

name	Uniform texture name.
wrapV	Wrapping mode value.

See also: irr::video::E_TEXTURE_CLAMP

◆ setZTest()

void Skylicht::CMaterial::setZTest ( video::E_COMPARISON_FUNC f )

inline

Set the Z-buffer comparison function.

Parameters

f	Comparison function value.

◆ setZWrite()

void Skylicht::CMaterial::setZWrite ( bool b )

inline

Enable or disable Z-buffer writing for the material.

Parameters

b	True to enable, false to disable.

◆ unloadUniformTexture()

void Skylicht::CMaterial::unloadUniformTexture ( const char * name )

Unload a specific uniform texture by name.

Parameters

name	Uniform texture name.

◆ updateTexture()

void Skylicht::CMaterial::updateTexture ( SMaterial & mat )

Replace a texture resource with a new texture in all relevant slots and uniforms.

Parameters

oldTexture	Pointer to old texture.
newTexture	Pointer to new texture.

The documentation for this class was generated from the following file:

Material/CMaterial.h

Classes

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ CMaterial()

Member Function Documentation

◆ addShaderUI()

◆ applyMaterial()

◆ autoDetectLoadTexture()

◆ changeShader() [1/2]

◆ changeShader() [2/2]

◆ clone()

◆ copyParamsTo()

◆ copyTo()

◆ findExtraParam()

◆ findExtraTexture()

◆ getExtraParams() [1/2]

◆ getExtraParams() [2/2]

◆ getExtraUniform()

◆ getExtraUniformTexture()

◆ getMaterialPath()

◆ getName()

◆ getPackage()

◆ getProperty()

◆ getShader()

◆ getShaderParams()

◆ getShaderPath()

◆ getTexture()

◆ getUniform()

◆ getUniformParams()

◆ getUniformTexture() [1/2]

◆ getUniformTexture() [2/2]

◆ getUniformTextureName()

◆ getZTest()

◆ haveUniform()

◆ isBackfaceCulling()

◆ isDeferred()

◆ isFrontfaceCulling()

◆ isZWrite()

◆ newExtra()

◆ newExtraUniform()

◆ newExtraUniformTexture()

◆ newUniform()

◆ newUniformTexture()

◆ reloadExtraParams()

◆ rename()

◆ replaceTexture()

◆ setBackfaceCulling()

◆ setDefaultValue()

◆ setExtraUniform()

◆ setExtraUniformTexture()

◆ setExtraUniformTextureWrapU()

◆ setExtraUniformTextureWrapV()

◆ setFrontfaceCulling()

◆ setManualInitTexture()

◆ setMaterialPath()

◆ setOverrideResource()

◆ setPackage()

◆ setProperty()

◆ setTexture() [1/2]

◆ setTexture() [2/2]

◆ setUniform()

◆ setUniform2()

◆ setUniform3()

◆ setUniform4() [1/2]

◆ setUniform4() [2/2]

◆ setUniformTexture() [1/3]

◆ setUniformTexture() [2/3]

◆ setUniformTexture() [3/3]

◆ setUniformTextureWrapU()

◆ setUniformTextureWrapV()

◆ setZTest()

◆ setZWrite()

◆ unloadUniformTexture()

◆ updateTexture()
