It serves as the interface for object classes that render 3D scenes. More...

#include <Entity/IRenderSystem.h>

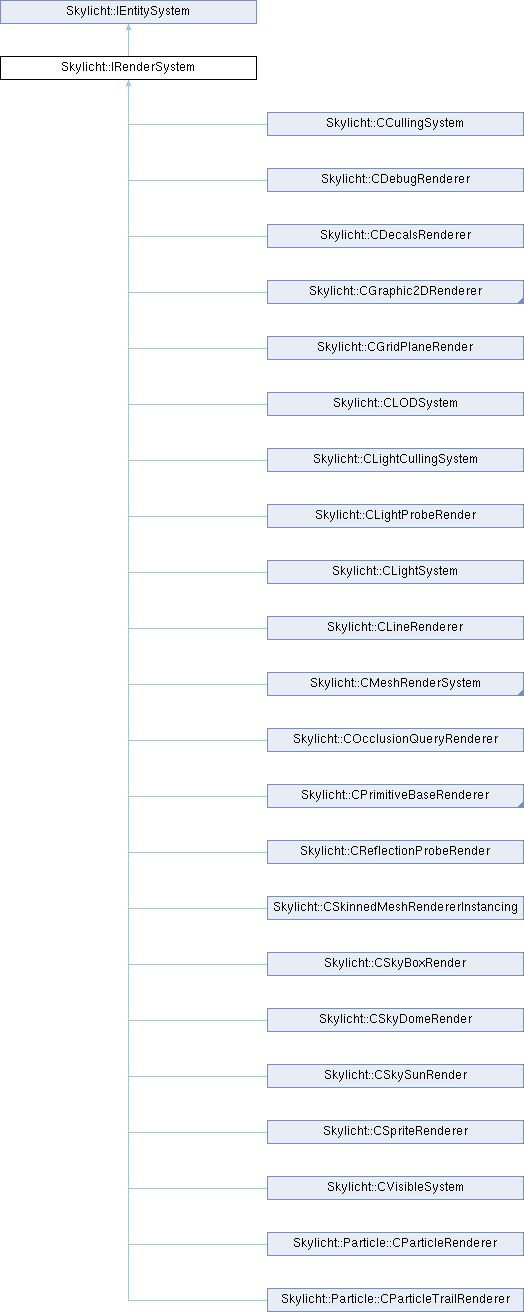

Inheritance diagram for Skylicht::IRenderSystem:

Public Types
enum	ERenderPass { Sky = 0 , Opaque , OcclusionQuery , Transparent , Effect }

Public Member Functions
virtual bool	isRenderSystem ()
IRenderPipeline::ERenderPipelineType	getPipelineType ()
virtual void	render (CEntityManager *entityManager)=0
virtual void	renderTransparent (CEntityManager *entityManager)
virtual void	renderEmission (CEntityManager *entityManager)
virtual void	postRender (CEntityManager *entityManager)
ERenderPass	getRenderPass ()
int	getSortingPriority ()
void	setSortingPriority (int s)
Public Member Functions inherited from Skylicht::IEntitySystem
virtual void	beginQuery (CEntityManager *entityManager)=0
virtual void	onQuery (CEntityManager entityManager, CEntity *entities, int count)=0
virtual void	init (CEntityManager *entityManager)=0
virtual void	update (CEntityManager *entityManager)=0
void	setSystemOrder (int order)
int	getSystemOrder ()

Protected Attributes
IRenderPipeline::ERenderPipelineType	m_pipelineType
ERenderPass	m_renderPass
int	m_sortingPriority
Protected Attributes inherited from Skylicht::IEntitySystem
int	m_systemOrder

Detailed Description

It serves as the interface for object classes that render 3D scenes.

Code example for adding a render system

CEntityManager* entityManager = scene->getEntityManager();

entityManager->addRenderSystem<CSelectingRenderer>()

Skylicht::CEntityManager

This object class manages all entities within a scene.

Definition CEntityManager.h:89

After querying and updating data for Entities, the IRenderSystem will call functions like render, renderTransparent, etc., to display the data on the screen or output image.
