This object class is similar to CRenderMesh but is designed for optimized instanced rendering. More...

#include <RenderMesh/CRenderMeshInstancing.h>

Inheritance diagram for Skylicht::CRenderMeshInstancing:

Public Member Functions
virtual void	initComponent ()
virtual void	updateComponent ()
virtual CObjectSerializable *	createSerializable ()
virtual void	loadSerializable (CObjectSerializable *object)
virtual void	refreshModelAndMaterial ()
virtual void	initFromPrefab (CEntityPrefab *prefab)
virtual CEntity *	spawn ()
virtual CEntity *	spawn (const core::matrix4 &transform)
const std::string &	getMeshResource ()
const std::string &	getMaterialResource ()
void	initFromMeshFile (const char *path, bool loadNormalMap=true, bool loadTexcoord2=false)
void	initMaterialFromFile (const char *material)
void	initMaterial (ArrayMaterial &materials, bool cloneMaterial=false)
void	applyShareTransformBuffer ()
void	applyShareMaterialBuffer ()
int	getMaterialCount ()
CMaterial *	getMaterial (int i)
core::array< CEntity * > &	getBaseEntities ()
std::vector< CRenderMeshData * > &	getRenderers ()
std::vector< CWorldTransformData * > &	getRenderTransforms ()
std::vector< CWorldTransformData * > &	getAllTransforms ()
Public Member Functions inherited from Skylicht::CEntityHandler
virtual void	onUpdateCullingLayer (u32 mask)
CEntity *	searchEntityByID (const char *id)
virtual CEntity *	createEntity ()
virtual CEntity *	createEntity (CEntity *parent)
virtual void	removeEntity (CEntity *entity)
virtual void	removeAllEntities ()
void	regenerateEntityId ()
core::array< CEntity * > &	getEntities ()
int	getEntityCount ()
void	getEntitiesTransforms (core::array< core::matrix4 > &result)
void	setShadowCasting (bool b)
bool	isShadowCasting ()
Public Member Functions inherited from Skylicht::CComponentSystem
const char *	getName ()
virtual void	reset ()
virtual void	startComponent ()
virtual void	endUpdate ()
virtual void	onEnable (bool b)
void	setEnable (bool b)
bool	isEnable ()
CGameObject *	getGameObject ()
void	setEnableSerializable (bool b)
bool	isSerializable ()
void	addLinkComponent (CComponentSystem *comp)
void	removeAllLink ()
Public Member Functions inherited from Skylicht::IActivatorObject
virtual	~IActivatorObject ()
	Virtual destructor for polymorphic activator objects.

Protected Member Functions
virtual void	releaseMaterial ()
virtual void	releaseEntities ()
virtual void	releaseBaseEntities ()
void	addRendererInstancing (CEntity entity, CRenderMeshData baseRenderMesh, CWorldTransformData *baseTransform)
void	addMaterial (CMaterial *material)
Protected Member Functions inherited from Skylicht::CEntityHandler
void	setEntities (CEntity **entities, u32 count)
void	removeChilds (CEntity *entity)
Protected Member Functions inherited from Skylicht::CComponentSystem
void	setOwner (CGameObject *obj)

Protected Attributes
CEntity *	m_root
core::array< CEntity * >	m_baseEntities
std::vector< CWorldTransformData * >	m_renderTransforms
std::vector< CWorldTransformData * >	m_transforms
std::vector< CRenderMeshData * >	m_renderers
ArrayMaterial	m_materials
std::string	m_meshFile
std::string	m_materialFile
bool	m_loadTexcoord2
bool	m_loadNormal
bool	m_fixInverseNormal
IVertexBuffer *	m_instancingMaterials
IVertexBuffer *	m_instancingTransform
IVertexBuffer *	m_instancingLighting
int	m_shareDataTransform
int	m_shareDataMaterials
Protected Attributes inherited from Skylicht::CEntityHandler
core::array< CEntity * >	m_entities
bool	m_shadowCasting
Protected Attributes inherited from Skylicht::CComponentSystem
CGameObject *	m_gameObject
bool	m_enable
bool	m_serializable
std::vector< CComponentSystem * >	m_linkComponent

Additional Inherited Members
Static Public Member Functions inherited from Skylicht::CComponentSystem
static int	useComponent (CComponentSystem *used)

Detailed Description

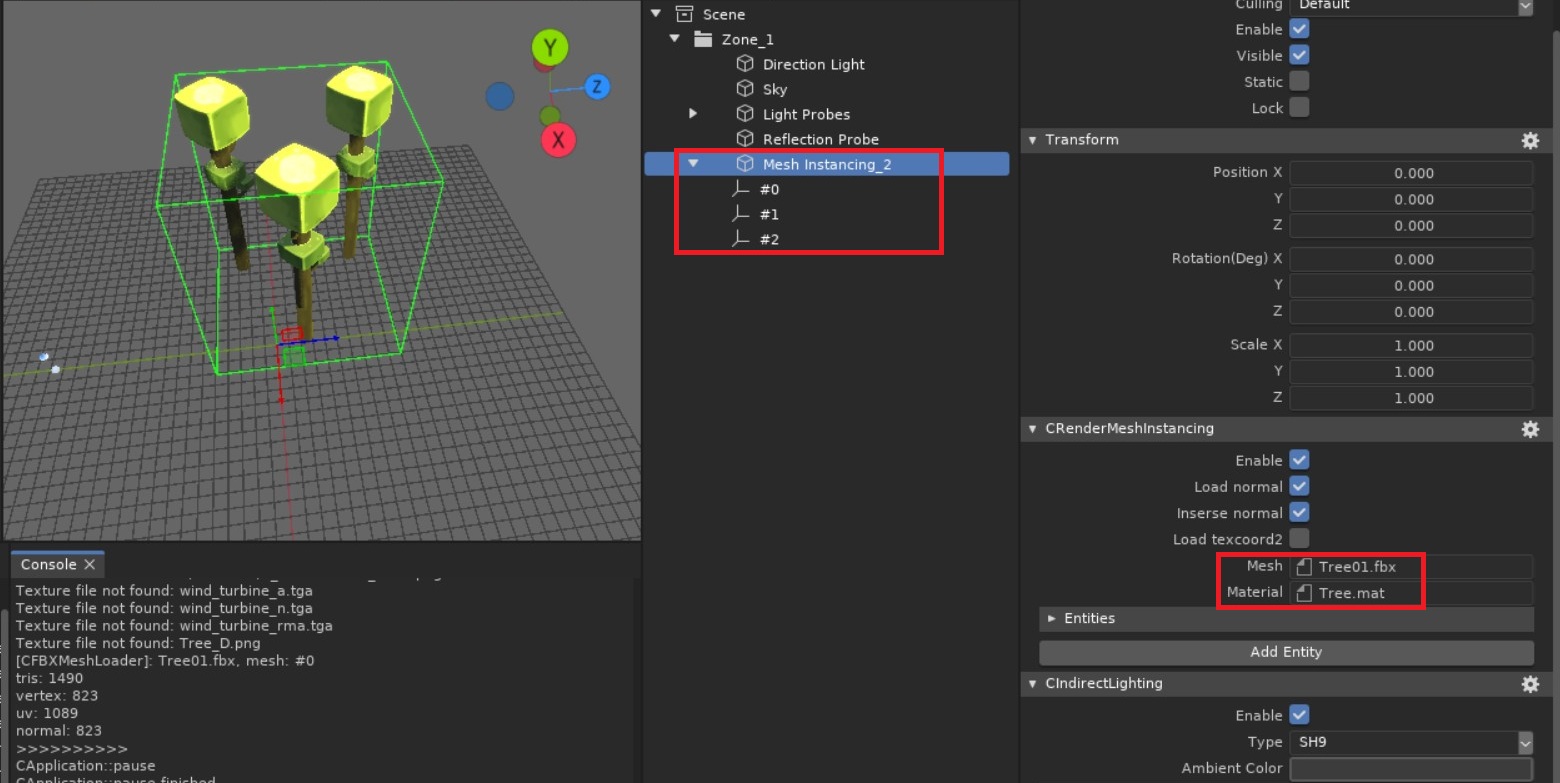

This object class is similar to CRenderMesh but is designed for optimized instanced rendering.

Instead of creating multiple game objects, CRenderMeshInstancing limits this to optimize the number of update calls and the total number of entities by using a single game object.

Instead, a model becomes a child entity that stores its transform data.

CMeshManager* meshManager = CMeshManager::getInstance();
std::vector<std::string> searchTextureFolders;
ArrayMaterial envMaterials = CMaterialManager::getInstance()->loadMaterial("SampleBoids/Environment/Environment.mat", true, searchTextureFolders);
CEntityPrefab* groundPrefab = meshManager->loadModel("SampleBoids/Environment/1_Ground_1.fbx", NULL, true);
if (groundPrefab)
{
    CGameObject* plane = zone->createEmptyObject();

    CRenderMeshInstancing* meshInstancing = plane->addComponent<CRenderMeshInstancing>();
    meshInstancing->initFromPrefab(groundPrefab);
    meshInstancing->initMaterial(envMaterials);

    for (int i = minBound; i <= maxBound; i++)
    {
        for (int j = minBound; j <= maxBound; j++)
        {
            CEntity* entity = meshInstancing->spawn();

            CWorldTransformData* transform = GET_ENTITY_DATA(entity, CWorldTransformData);
            transform->Relative.setTranslation(core::vector3df(i * space, 0.0f, j * space));
            transform->Relative.setScale(scaleVector);
        }
    }

    meshInstancing->applyShareTransformBuffer();
    meshInstancing->applyShareMaterialBuffer();

    plane->addComponent<CIndirectLighting>();
}
