This class manages GUI components, including creating and deleting images and sprites. More...

#include <Graphics2D/CCanvas.h>

Inheritance diagram for Skylicht::CCanvas:

Public Member Functions
	CCanvas ()
	Constructor.
virtual	~CCanvas ()
	Destructor. Cleans up GUI elements and systems.
virtual void	initComponent ()
	Initialize the canvas component.
virtual void	updateComponent ()
	Update the canvas component.
virtual void	onResize ()
	Handle canvas resizing (usually called when screen size changes).
void	updateEntities ()
	Update internal entity lists and sorting for rendering.
void	render (CCamera *camera)
	Render the GUI elements tree using the specified camera.
CGUIElement *	getHitTest (CCamera *camera, float x, float y, const core::recti &viewport)
	Perform hit-testing to find the GUI element under the given coordinates.
CEntityPrefab *	getEntityManager ()
	Get the entity manager.
void	setSortDepth (int d)
	Set the sort depth for rendering.
int	getSortDepth ()
	Get the current sort depth value.
void	setRect (const core::rectf &r)
	Set the canvas rectangle.
void	setDefaultRect (const core::rectf &r)
	Set the default rectangle value.
const core::rectf &	getDefaultRect ()
	Get the default rectangle.
void	applyGUIScale (float widthOrHeight=1.0f)
	Apply GUI scaling based on width or height ratio.
void	resetGUIScale ()
	Reset the GUI scaling to default (no scale).
const core::vector3df &	getRootScale ()
	Get the root element's scale vector.
CGUIElement *	getRootElement ()
	Get the root GUI element.
void	setEnable3DBillboard (bool b)
	Enable or disable 3D billboard rendering.
bool	is3DBillboardEnabled ()
	Check if 3D billboard rendering is enabled.
void	removeAllElements ()
	Remove all GUI elements from the canvas.
CGUIElement *	createElement ()
	Create a generic GUI element as a child of root.
CGUIElement *	createElement (const core::rectf &r)
	Create a GUI element with a specific rectangle as a child of root.
CGUIElement *	createElement (CGUIElement *e, const core::rectf &r)
	Create a GUI element with a specific parent and rectangle.
CGUIImage *	createImage ()
	Create an image element as a child of root.
CGUIImage *	createImage (const core::rectf &r)
	Create an image element with a rectangle as a child of root.
CGUIImage *	createImage (CGUIElement *e, const core::rectf &r)
	Create an image element with a parent and rectangle.
CGUIText *	createText (IFont *font)
	Create a text element with a font as a child of root.
CGUIText *	createText (const core::rectf &r, IFont *font)
	Create a text element with a rectangle and font as a child of root.
CGUIText *	createText (CGUIElement e, IFont font)
	Create a text element with a parent and font.
CGUIText *	createText (CGUIElement e, const core::rectf &r, IFont font)
	Create a text element with a parent, rectangle and font.
CGUISprite *	createSprite (SFrame *frame)
	Create a sprite element with a frame as a child of root.
CGUISprite *	createSprite (const core::rectf &r, SFrame *frame)
	Create a sprite element with a rectangle and frame.
CGUISprite *	createSprite (CGUIElement e, SFrame frame)
	Create a sprite element with a parent and frame.
CGUISprite *	createSprite (CGUIElement e, const core::rectf &r, SFrame frame)
	Create a sprite element with a parent, rectangle, and frame.
CGUIMask *	createMask (const core::rectf &r)
	Create a mask element with a rectangle as a child of root.
CGUIMask *	createMask (CGUIElement *e, const core::rectf &r)
	Create a mask element with a parent and rectangle.
CGUIRect *	createRect (const video::SColor &c)
	Create a rectangle element with a color as a child of root.
CGUIRect *	createRect (const core::rectf &r, const video::SColor &c)
	Create a rectangle element with a rectangle and color.
CGUIRect *	createRect (CGUIElement *e, const core::rectf &r, const video::SColor &c)
	Create a rectangle element with a parent, rectangle, and color.
CGUIElipse *	createElipse (const video::SColor &c)
	Create an elipse element with a color as a child of root.
CGUIElipse *	createElipse (const core::rectf &r, const video::SColor &c)
	Create an elipse element with a rectangle and color.
CGUIElipse *	createElipse (CGUIElement *e, const core::rectf &r, const video::SColor &c)
	Create an elipse element with a parent, rectangle, and color.
CGUILayout *	createLayout ()
	Create a layout element as a child of root.
CGUILayout *	createLayout (const core::rectf &r)
	Create a layout element with a rectangle.
CGUILayout *	createLayout (CGUIElement *e, const core::rectf &r)
	Create a layout element with a parent and rectangle.
CGUIFitSprite *	createFitSprite (SFrame *frame)
	Create a fit sprite element with a frame as a child of root.
CGUIFitSprite *	createFitSprite (const core::rectf &r, SFrame *frame)
	Create a fit sprite element with a rectangle and frame.
CGUIFitSprite *	createFitSprite (CGUIElement e, SFrame frame)
	Create a fit sprite element with a parent and frame.
CGUIFitSprite *	createFitSprite (CGUIElement e, const core::rectf &r, SFrame frame)
	Create a fit sprite element with a parent, rectangle and frame.
virtual CGUIElement *	createNullElement (CGUIElement parent, const char type)
	Create a null GUI element by type (UTF-8).
virtual CGUIElement *	createNullElement (CGUIElement parent, const wchar_t type)
	Create a null GUI element by type (Unicode).
const core::matrix4 &	getRenderWorldTransform ()
	Get the world transform matrix for rendering.
void	setRenderWorldTransform (core::matrix4 &w)
	Set the world transform matrix for rendering.
CCamera *	getRenderCamera ()
	Get the camera currently used for rendering.
CGUIElement *	getGUIByID (const char *id)
	Find a GUI element by its ID.
CGUIElement *	getGUIByPath (const char *path)
	Find a GUI element by its path (separated by / or ).
CGUIElement *	searchGUI (const char *name)
	Find a GUI element by name.
CGUIElement *	getGUIByPath (CGUIElement search, const char path)
	Find a GUI element by path starting from a specific element.
CGUIElement *	searchGUI (CGUIElement search, const char name)
	Find a GUI element by name starting from a specific element.
template<typename T>
std::vector< T * >	getElementsInChild (bool addThis)
	Find all child elements of a certain type.
void	updateLocalizedText ()
	Find all CGUIText* and update localized text, the event OnLocalize must bind to the localize function.
bool	isClipped (CGUIElement *element)
Public Member Functions inherited from Skylicht::CComponentSystem
const char *	getName ()
virtual void	reset ()
virtual void	startComponent ()
virtual void	endUpdate ()
virtual void	onEnable (bool b)
virtual void	onUpdateCullingLayer (u32 mask)
virtual CObjectSerializable *	createSerializable ()
virtual void	loadSerializable (CObjectSerializable *object)
void	setEnable (bool b)
bool	isEnable ()
CGameObject *	getGameObject ()
void	setEnableSerializable (bool b)
bool	isSerializable ()
void	addLinkComponent (CComponentSystem *comp)
void	removeAllLink ()
Public Member Functions inherited from Skylicht::IActivatorObject
virtual	~IActivatorObject ()
	Virtual destructor for polymorphic activator objects.

Public Attributes
bool	IsInEditor
	True if the canvas is shown in editor mode.
bool	DrawOutline
	True to draw outlines for GUI elements.
std::function< void(CGUIElement *)>	OnGUILoaded
std::function< void(CGUIText *)>	OnLocalize

Protected Attributes
core::rectf	m_rect
	The rectangle representing the canvas size.
core::rectf	m_defaultRect
	The default rectangle size of the canvas.
CGUIElement *	m_root
	The root GUI element of the canvas.
int	m_sortDepth
	Sorting depth for rendering.
float	m_scaleGUI
	Scale factor for GUI.
bool	m_haveScaleGUI
	True if GUI scaling is applied.
bool	m_is3DBillboard
	Enable 3D billboard rendering for the canvas.
core::matrix4	m_renderWorldTransform
	The world transform used for rendering.
CCamera *	m_renderCamera
	The camera currently used for rendering.
CGUIMask *	m_currentMask
	The current mask applied during rendering.
CEntityPrefab *	m_entityMgr
	Entity manager for managing GUI entities.
std::vector< IEntitySystem * >	m_systems
	List of entity systems for GUI logic.
CFastArray< CEntity * >	m_depth [MAX_ENTITY_DEPTH]
	Entities sorted by children depth.
CFastArray< CEntity * >	m_alives
	List of alive entities.
Protected Attributes inherited from Skylicht::CComponentSystem
CGameObject *	m_gameObject
bool	m_enable
bool	m_serializable
std::vector< CComponentSystem * >	m_linkComponent

Additional Inherited Members
Static Public Member Functions inherited from Skylicht::CComponentSystem
static int	useComponent (CComponentSystem *used)
Protected Member Functions inherited from Skylicht::CComponentSystem
void	setOwner (CGameObject *obj)

Detailed Description

This class manages GUI components, including creating and deleting images and sprites.

Canvas for managing GUI components and their hierarchy, rendering, and interaction. CCanvas serves as the root for all GUI elements rendered on screen. It supports element creation, scaling, resizing, hit - testing, and access by ID or path.

GUI elements can be designed visually in Skylicht-Editor, or loaded from .gui files using CGUIImporter.

Example usage:

// Create an image element

CGUIImage* image = canvas->createImage(rect);

Skylicht::CGUIImage

This is the object class for displaying a texture image.

Definition CGUIImage.h:43

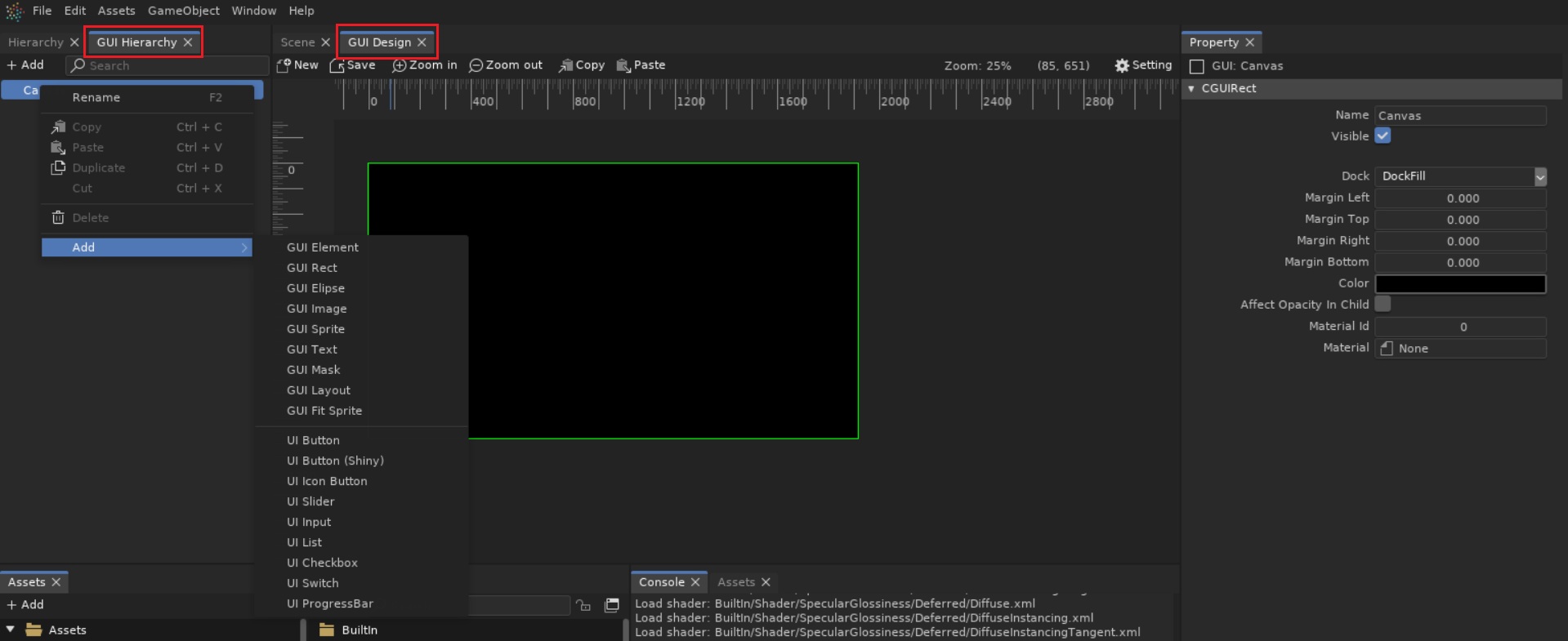

Skylicht-Editor

To design the GUI, open the Skylicht-Editor and switch to the GUI design window.

The interface includes features for designing GUIs for Canvas.

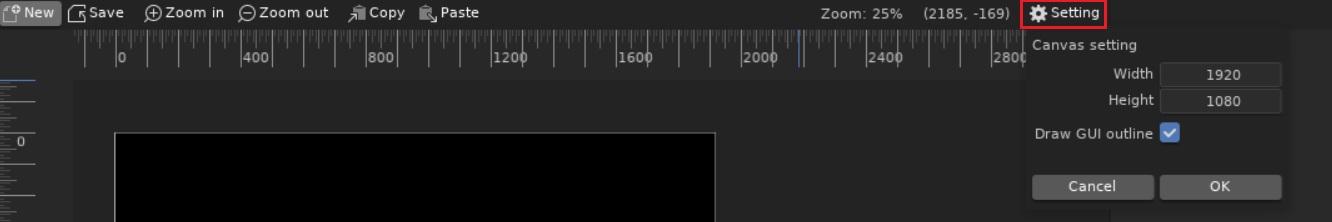

Setting

You can adjust the base size of the Canvas in the Settings section.

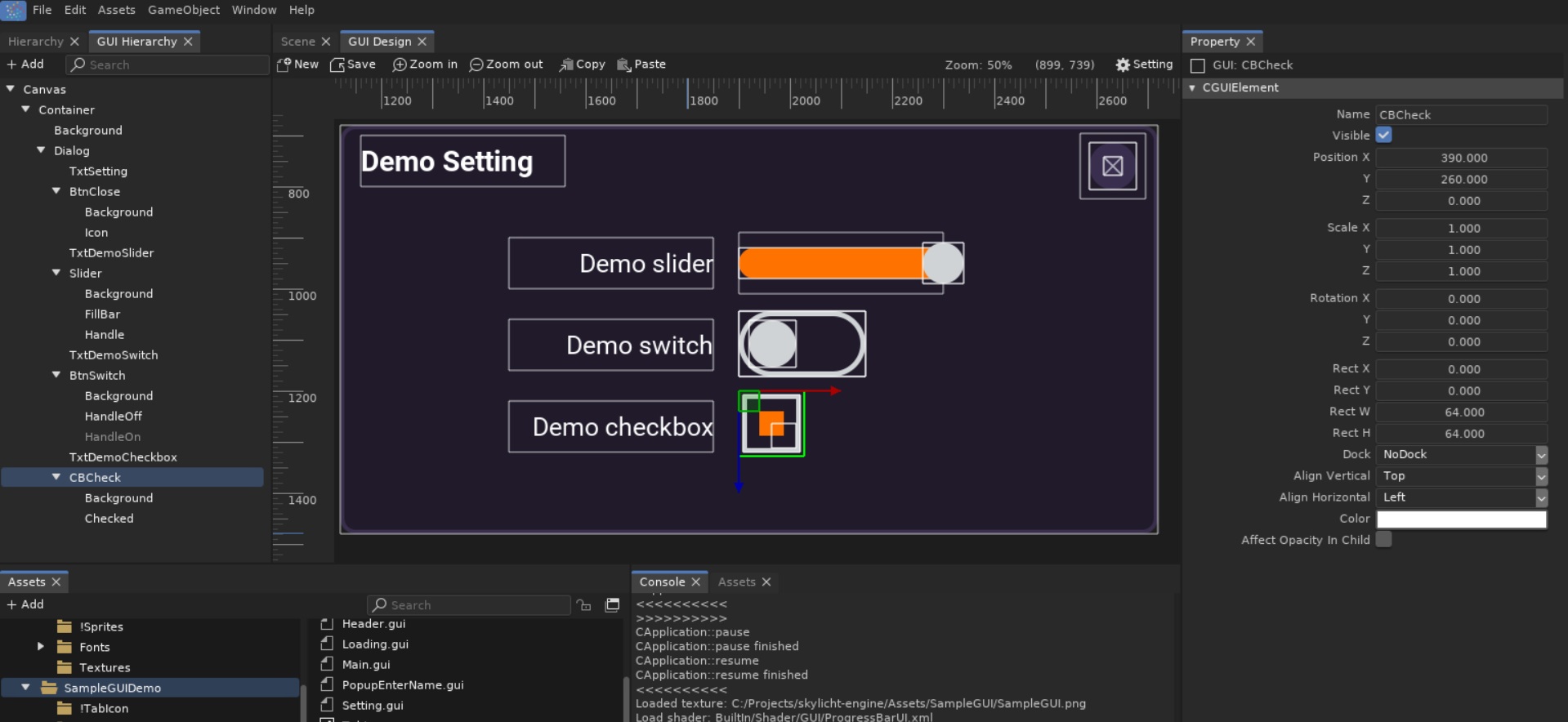

Working with .gui Files

You can save the design file to .gui formats and use CGUIImporter to load it into the Canvas.

You can refer to the example file Assets\SampleGUIDemo\Setting.gui and the codes in Samples\GUI,

Member Function Documentation

◆ applyGUIScale()

void Skylicht::CCanvas::applyGUIScale ( float widthOrHeight = 1.0f )

Apply GUI scaling based on width or height ratio.

If widthOrHeight = 0.0, the scaling will prioritize the width of the canvas. If widthOrHeight = 1.0, the scaling will prioritize the height of the canvas. Values between 0.0 and 1.0 interpolate between width-priority (0.0) and height-priority (1.0).

Parameters

widthOrHeight Scale value (default = 1.0).

◆ createElement() [1/3]

CGUIElement * Skylicht::CCanvas::createElement ( )

Create a generic GUI element as a child of root.

Returns: Pointer to the created CGUIElement.

◆ createElement() [2/3]

CGUIElement * Skylicht::CCanvas::createElement	(	CGUIElement *	e,
		const core::rectf &	r )

Create a GUI element with a specific parent and rectangle.

Parameters

e	Parent element.
r	Rectangle for the element.

Returns: Pointer to the created CGUIElement.

◆ createElement() [3/3]

CGUIElement * Skylicht::CCanvas::createElement ( const core::rectf & r )

Create a GUI element with a specific rectangle as a child of root.

Parameters

r	Rectangle for the element.

Returns: Pointer to the created CGUIElement.

◆ createElipse() [1/3]

CGUIElipse * Skylicht::CCanvas::createElipse	(	CGUIElement *	e,
		const core::rectf &	r,
		const video::SColor &	c )

Create an elipse element with a parent, rectangle, and color.

Parameters

e	Parent element.
r	Rectangle.
c	Color.

Returns: Pointer to CGUIElipse.

◆ createElipse() [2/3]

CGUIElipse * Skylicht::CCanvas::createElipse	(	const core::rectf &	r,
		const video::SColor &	c )

Create an elipse element with a rectangle and color.

Parameters

r	Rectangle.
c	Color.

Returns: Pointer to CGUIElipse.

◆ createElipse() [3/3]

CGUIElipse * Skylicht::CCanvas::createElipse ( const video::SColor & c )

Create an elipse element with a color as a child of root.

Parameters

c Color.

Returns: Pointer to CGUIElipse.

◆ createFitSprite() [1/4]

CGUIFitSprite * Skylicht::CCanvas::createFitSprite	(	CGUIElement *	e,
		const core::rectf &	r,
		SFrame *	frame )

Create a fit sprite element with a parent, rectangle and frame.

Parameters

e	Parent element.
r	Rectangle.
frame	Sprite frame.

Returns: Pointer to CGUIFitSprite.

◆ createFitSprite() [2/4]

CGUIFitSprite * Skylicht::CCanvas::createFitSprite	(	CGUIElement *	e,
		SFrame *	frame )

Create a fit sprite element with a parent and frame.

Parameters

e	Parent element.
frame	Sprite frame.

Returns: Pointer to CGUIFitSprite.

◆ createFitSprite() [3/4]

CGUIFitSprite * Skylicht::CCanvas::createFitSprite	(	const core::rectf &	r,
		SFrame *	frame )

Create a fit sprite element with a rectangle and frame.

Parameters

r	Rectangle.
frame	Sprite frame.

Returns: Pointer to CGUIFitSprite.

◆ createFitSprite() [4/4]

CGUIFitSprite * Skylicht::CCanvas::createFitSprite ( SFrame * frame )

Create a fit sprite element with a frame as a child of root.

Parameters

frame Sprite frame.

Returns: Pointer to CGUIFitSprite.

◆ createImage() [1/3]

CGUIImage * Skylicht::CCanvas::createImage ( )

Create an image element as a child of root.

Returns: Pointer to CGUIImage.

◆ createImage() [2/3]

CGUIImage * Skylicht::CCanvas::createImage	(	CGUIElement *	e,
		const core::rectf &	r )

Create an image element with a parent and rectangle.

Parameters

e	Parent element.
r	Rectangle for the image.

Returns: Pointer to CGUIImage.

◆ createImage() [3/3]

CGUIImage * Skylicht::CCanvas::createImage ( const core::rectf & r )

Create an image element with a rectangle as a child of root.

Parameters

r	Rectangle for the image.

Returns: Pointer to CGUIImage.

◆ createLayout() [1/3]

CGUILayout * Skylicht::CCanvas::createLayout ( )

Create a layout element as a child of root.

Returns: Pointer to CGUILayout.

◆ createLayout() [2/3]

CGUILayout * Skylicht::CCanvas::createLayout	(	CGUIElement *	e,
		const core::rectf &	r )

Create a layout element with a parent and rectangle.

Parameters

e	Parent element.
r	Rectangle.

Returns: Pointer to CGUILayout.

◆ createLayout() [3/3]

CGUILayout * Skylicht::CCanvas::createLayout ( const core::rectf & r )

Create a layout element with a rectangle.

Parameters

r	Rectangle.

Returns: Pointer to CGUILayout.

◆ createMask() [1/2]

CGUIMask * Skylicht::CCanvas::createMask	(	CGUIElement *	e,
		const core::rectf &	r )

Create a mask element with a parent and rectangle.

Parameters

e	Parent element.
r	Rectangle.

Returns: Pointer to CGUIMask.

◆ createMask() [2/2]

CGUIMask * Skylicht::CCanvas::createMask ( const core::rectf & r )

Create a mask element with a rectangle as a child of root.

Parameters

r	Rectangle.

Returns: Pointer to CGUIMask.

◆ createNullElement() [1/2]

virtual CGUIElement * Skylicht::CCanvas::createNullElement	(	CGUIElement *	parent,
		const char *	type )

virtual

Create a null GUI element by type (UTF-8).

Parameters

parent	Parent element.
type	Type name.

Returns: Pointer to CGUIElement or derived type.

◆ createNullElement() [2/2]

virtual CGUIElement * Skylicht::CCanvas::createNullElement	(	CGUIElement *	parent,
		const wchar_t *	type )

virtual

Create a null GUI element by type (Unicode).

Parameters

parent	Parent element.
type	Type name (wide char).

Returns: Pointer to CGUIElement or derived type.

◆ createRect() [1/3]

CGUIRect * Skylicht::CCanvas::createRect	(	CGUIElement *	e,
		const core::rectf &	r,
		const video::SColor &	c )

Create a rectangle element with a parent, rectangle, and color.

Parameters

e	Parent element.
r	Rectangle.
c	Color.

Returns: Pointer to CGUIRect.

◆ createRect() [2/3]

CGUIRect * Skylicht::CCanvas::createRect	(	const core::rectf &	r,
		const video::SColor &	c )

Create a rectangle element with a rectangle and color.

Parameters

r	Rectangle.
c	Color.

Returns: Pointer to CGUIRect.

◆ createRect() [3/3]

CGUIRect * Skylicht::CCanvas::createRect ( const video::SColor & c )

Create a rectangle element with a color as a child of root.

Parameters

c Color.

Returns: Pointer to CGUIRect.

◆ createSprite() [1/4]

CGUISprite * Skylicht::CCanvas::createSprite	(	CGUIElement *	e,
		const core::rectf &	r,
		SFrame *	frame )

Create a sprite element with a parent, rectangle, and frame.

Parameters

e	Parent element.
r	Rectangle.
frame	Sprite frame.

Returns: Pointer to CGUISprite.

◆ createSprite() [2/4]

CGUISprite * Skylicht::CCanvas::createSprite	(	CGUIElement *	e,
		SFrame *	frame )

Create a sprite element with a parent and frame.

Parameters

e	Parent element.
frame	Sprite frame.

Returns: Pointer to CGUISprite.

◆ createSprite() [3/4]

CGUISprite * Skylicht::CCanvas::createSprite	(	const core::rectf &	r,
		SFrame *	frame )

Create a sprite element with a rectangle and frame.

Parameters

r	Rectangle.
frame	Sprite frame.

Returns: Pointer to CGUISprite.

◆ createSprite() [4/4]

CGUISprite * Skylicht::CCanvas::createSprite ( SFrame * frame )

Create a sprite element with a frame as a child of root.

Parameters

frame Sprite frame.

Returns: Pointer to CGUISprite.

◆ createText() [1/4]

CGUIText * Skylicht::CCanvas::createText	(	CGUIElement *	e,
		const core::rectf &	r,
		IFont *	font )

Create a text element with a parent, rectangle and font.

Parameters

e	Parent element.
r	Rectangle.
font	Font.

Returns: Pointer to CGUIText.

◆ createText() [2/4]

CGUIText * Skylicht::CCanvas::createText	(	CGUIElement *	e,
		IFont *	font )

Create a text element with a parent and font.

Parameters

e	Parent element.
font	Font.

Returns: Pointer to CGUIText.

◆ createText() [3/4]

CGUIText * Skylicht::CCanvas::createText	(	const core::rectf &	r,
		IFont *	font )

Create a text element with a rectangle and font as a child of root.

Parameters

r	Rectangle.
font	Font.

Returns: Pointer to CGUIText.

◆ createText() [4/4]

CGUIText * Skylicht::CCanvas::createText ( IFont * font )

Create a text element with a font as a child of root.

Parameters

font	Font for the text.

Returns: Pointer to CGUIText.

◆ getDefaultRect()

const core::rectf & Skylicht::CCanvas::getDefaultRect ( )

inline

Get the default rectangle.

Returns: Default rectangle.

◆ getElementsInChild()

template<typename T>

std::vector< T * > Skylicht::CCanvas::getElementsInChild ( bool addThis )

Find all child elements of a certain type.

Template Parameters

T	Type to search for.

Parameters

addThis If true, include the root element.

Returns: Vector of pointers to found elements of type T.

◆ getEntityManager()

CEntityPrefab * Skylicht::CCanvas::getEntityManager ( )

inline

Get the entity manager.

Returns: Pointer to CEntityPrefab.

◆ getGUIByID()

CGUIElement * Skylicht::CCanvas::getGUIByID ( const char * id )

Find a GUI element by its ID.

Parameters

id	String ID.

Returns: Pointer to CGUIElement, or NULL if not found.

◆ getGUIByPath() [1/2]

CGUIElement * Skylicht::CCanvas::getGUIByPath	(	CGUIElement *	search,
		const char *	path )

Find a GUI element by path starting from a specific element.

Parameters

search	Starting element.
path	String path.

Returns: Pointer to CGUIElement, or NULL if not found.

◆ getGUIByPath() [2/2]

CGUIElement * Skylicht::CCanvas::getGUIByPath ( const char * path )

Find a GUI element by its path (separated by / or ).

Parameters

path	String path.

Returns: Pointer to CGUIElement, or NULL if not found.

◆ getHitTest()

CGUIElement * Skylicht::CCanvas::getHitTest	(	CCamera *	camera,
		float	x,
		float	y,
		const core::recti &	viewport )

Perform hit-testing to find the GUI element under the given coordinates.

Parameters

camera	The camera used for projection.
x	Screen X coordinate.
y	Screen Y coordinate.
viewport	The viewport rectangle.

Returns: Pointer to the hit CGUIElement, or NULL if none.

◆ getRenderCamera()

CCamera * Skylicht::CCanvas::getRenderCamera ( )

inline

Get the camera currently used for rendering.

Returns: Pointer to camera.

◆ getRenderWorldTransform()

const core::matrix4 & Skylicht::CCanvas::getRenderWorldTransform ( )

inline

Get the world transform matrix for rendering.

Returns: Reference to the matrix.

◆ getRootElement()

CGUIElement * Skylicht::CCanvas::getRootElement ( )

inline

Get the root GUI element.

Returns: Pointer to the root CGUIElement.

◆ getRootScale()

const core::vector3df & Skylicht::CCanvas::getRootScale ( )

Get the root element's scale vector.

Returns: Reference to the scale vector.

◆ getSortDepth()

int Skylicht::CCanvas::getSortDepth ( )

inline

Get the current sort depth value.

Returns: Depth value.

◆ initComponent()

virtual void Skylicht::CCanvas::initComponent ( )

virtual

Initialize the canvas component.

Implements Skylicht::CComponentSystem.

◆ is3DBillboardEnabled()

bool Skylicht::CCanvas::is3DBillboardEnabled ( )

inline

Check if 3D billboard rendering is enabled.

Returns: True if enabled.

◆ render()

void Skylicht::CCanvas::render ( CCamera * camera )

Render the GUI elements tree using the specified camera.

Parameters

camera The camera to use for rendering.

◆ searchGUI() [1/2]

CGUIElement * Skylicht::CCanvas::searchGUI	(	CGUIElement *	search,
		const char *	name )

Find a GUI element by name starting from a specific element.

Parameters

search	Starting element.
name	Name of the element to find.

Returns: Pointer to CGUIElement, or NULL if not found.

◆ searchGUI() [2/2]

CGUIElement * Skylicht::CCanvas::searchGUI ( const char * name )

Find a GUI element by name.

Parameters

name	Name of the element to find.

Returns: Pointer to CGUIElement, or NULL if not found.

◆ setDefaultRect()

void Skylicht::CCanvas::setDefaultRect ( const core::rectf & r )

inline

Set the default rectangle value.

Parameters

r	Rectangle value.

◆ setEnable3DBillboard()

void Skylicht::CCanvas::setEnable3DBillboard ( bool b )

inline

Enable or disable 3D billboard rendering.

Parameters

b	True to enable.

◆ setRect()

void Skylicht::CCanvas::setRect ( const core::rectf & r )

inline

Set the canvas rectangle.

Parameters

r	Rectangle value.

◆ setRenderWorldTransform()

void Skylicht::CCanvas::setRenderWorldTransform ( core::matrix4 & w )

inline

Set the world transform matrix for rendering.

Parameters

w	Matrix to set.

◆ setSortDepth()

void Skylicht::CCanvas::setSortDepth ( int d )

inline

Set the sort depth for rendering.

Parameters

d	Depth value.

◆ updateComponent()

virtual void Skylicht::CCanvas::updateComponent ( )

virtual

Update the canvas component.

Implements Skylicht::CComponentSystem.

The documentation for this class was generated from the following file:

Graphics2D/CCanvas.h

Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ applyGUIScale()

◆ createElement() [1/3]

◆ createElement() [2/3]

◆ createElement() [3/3]

◆ createElipse() [1/3]

◆ createElipse() [2/3]

◆ createElipse() [3/3]

◆ createFitSprite() [1/4]

◆ createFitSprite() [2/4]

◆ createFitSprite() [3/4]

◆ createFitSprite() [4/4]

◆ createImage() [1/3]

◆ createImage() [2/3]

◆ createImage() [3/3]

◆ createLayout() [1/3]

◆ createLayout() [2/3]

◆ createLayout() [3/3]

◆ createMask() [1/2]

◆ createMask() [2/2]

◆ createNullElement() [1/2]

◆ createNullElement() [2/2]

◆ createRect() [1/3]

◆ createRect() [2/3]

◆ createRect() [3/3]

◆ createSprite() [1/4]

◆ createSprite() [2/4]

◆ createSprite() [3/4]

◆ createSprite() [4/4]

◆ createText() [1/4]

◆ createText() [2/4]

◆ createText() [3/4]

◆ createText() [4/4]

◆ getDefaultRect()

◆ getElementsInChild()

◆ getEntityManager()

◆ getGUIByID()

◆ getGUIByPath() [1/2]

◆ getGUIByPath() [2/2]

◆ getHitTest()

◆ getRenderCamera()

◆ getRenderWorldTransform()

◆ getRootElement()

◆ getRootScale()

◆ getSortDepth()

◆ initComponent()

◆ is3DBillboardEnabled()

◆ render()

◆ searchGUI() [1/2]

◆ searchGUI() [2/2]

◆ setDefaultRect()

◆ setEnable3DBillboard()

◆ setRect()

◆ setRenderWorldTransform()

◆ setSortDepth()

◆ updateComponent()
