Skylicht::CIndirectLighting Class Reference

This object holds the parameters for indirect lighting like SH or AmbientColor or Lightmap. More...

#include <IndirectLighting/CIndirectLighting.h>

Inheritance diagram for Skylicht::CIndirectLighting:

Public Types
enum	EIndirectType { LightmapArray = 0 , VertexColor , SH9 , AmbientColor }

Public Member Functions
virtual void	initComponent ()
virtual void	startComponent ()
virtual void	updateComponent ()
virtual CObjectSerializable *	createSerializable ()
virtual void	loadSerializable (CObjectSerializable *object)
void	setLightLayers (u32 layers)
void	setAutoSH (bool b)
void	setIndirectLightingType (EIndirectType type, bool loadLightmap=true)
void	setIndirectLightmap (ITexture *texture)
ITexture *	getIndirectLightmap ()
void	setSH (core::vector3df *sh)
void	setAmbientColor (const SColor &color)
void	setCustomIntensity (float intensity)
EIndirectType	getIndirectLightingType ()
std::vector< CIndirectLightingData * > &	getData ()
bool	isLightmapEmpty ()
bool	isLightmapChanged (const std::vector< std::string > &paths)
void	removeAllData ()
Public Member Functions inherited from Skylicht::CComponentSystem
const char *	getName ()
virtual void	reset ()
virtual void	endUpdate ()
virtual void	onEnable (bool b)
virtual void	onUpdateCullingLayer (u32 mask)
void	setEnable (bool b)
bool	isEnable ()
CGameObject *	getGameObject ()
void	setEnableSerializable (bool b)
bool	isSerializable ()
void	addLinkComponent (CComponentSystem *comp)
void	removeAllLink ()
Public Member Functions inherited from Skylicht::IActivatorObject
virtual	~IActivatorObject ()
	Virtual destructor for polymorphic activator objects.

Protected Member Functions
void	addLightingData (CEntity *entity)
Protected Member Functions inherited from Skylicht::CComponentSystem
void	setOwner (CGameObject *obj)

Protected Attributes
EIndirectType	m_type
bool	m_autoSH
std::vector< CIndirectLightingData * >	m_data
core::vector3df	m_sh [9]
float	m_intensity
float	m_customIntensity
std::vector< std::string >	m_indirectLMPaths
ITexture *	m_indirectLM
bool	m_internalIndirectLM
SColor	m_ambientColor
u32	m_lightLayers
Protected Attributes inherited from Skylicht::CComponentSystem
CGameObject *	m_gameObject
bool	m_enable
bool	m_serializable
std::vector< CComponentSystem * >	m_linkComponent

Additional Inherited Members
Static Public Member Functions inherited from Skylicht::CComponentSystem
static int	useComponent (CComponentSystem *used)

Detailed Description

This object holds the parameters for indirect lighting like SH or AmbientColor or Lightmap.

The component stores parameters related to indirect light.

The default type is Spherical Harmonics (SH). The SH values are taken from the nearest Light Probe.

However, you can change the indirect lighting to a Ambient Color or a Lightmap Texture that has been baked using a Lightmapper.

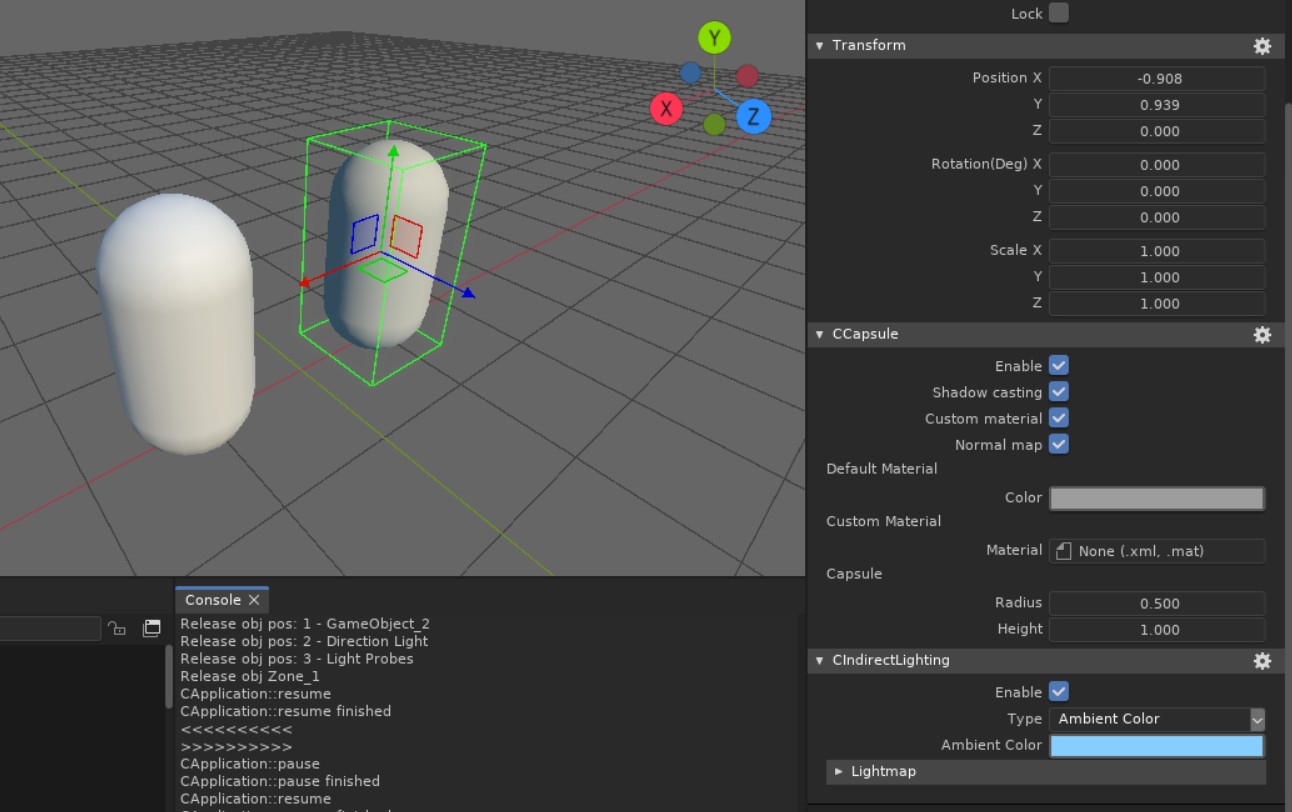

The capsule shape on the left uses SH illumination, and the one on the right uses Ambient Color

See also

CLightProbes

Member Function Documentation

createSerializable()

virtual CObjectSerializable * Skylicht::CIndirectLighting::createSerializable ( )

virtual

Reimplemented from Skylicht::CComponentSystem.

initComponent()

virtual void Skylicht::CIndirectLighting::initComponent ( )

virtual

Implements Skylicht::CComponentSystem.

loadSerializable()

virtual void Skylicht::CIndirectLighting::loadSerializable ( CObjectSerializable * object )

virtual

Reimplemented from Skylicht::CComponentSystem.

startComponent()

virtual void Skylicht::CIndirectLighting::startComponent ( )

virtual

Reimplemented from Skylicht::CComponentSystem.

updateComponent()

virtual void Skylicht::CIndirectLighting::updateComponent ( )

virtual

Implements Skylicht::CComponentSystem.

---

The documentation for this class was generated from the following file:

• IndirectLighting/CIndirectLighting.h
